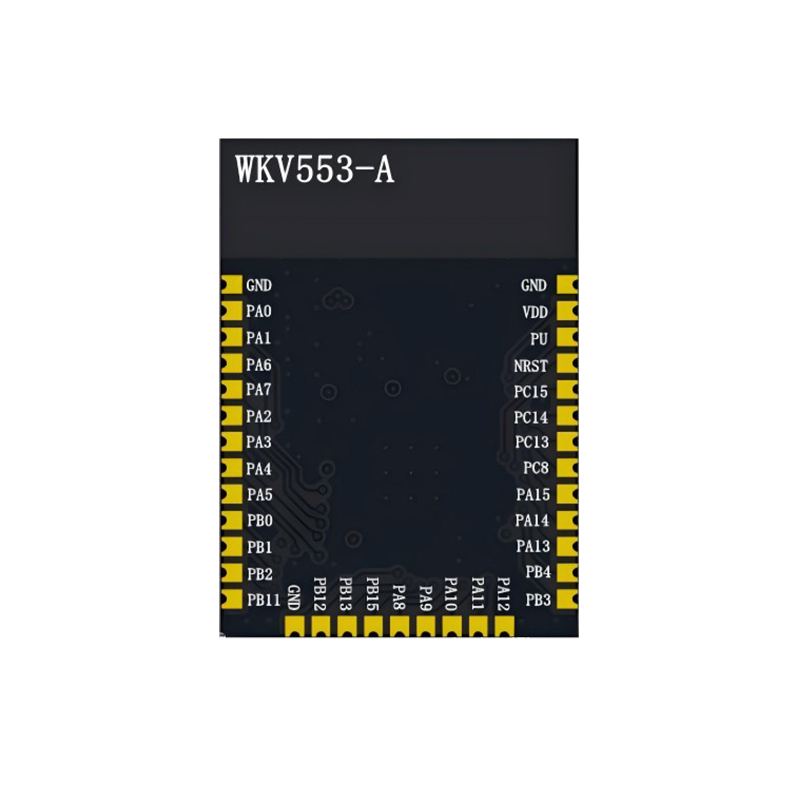

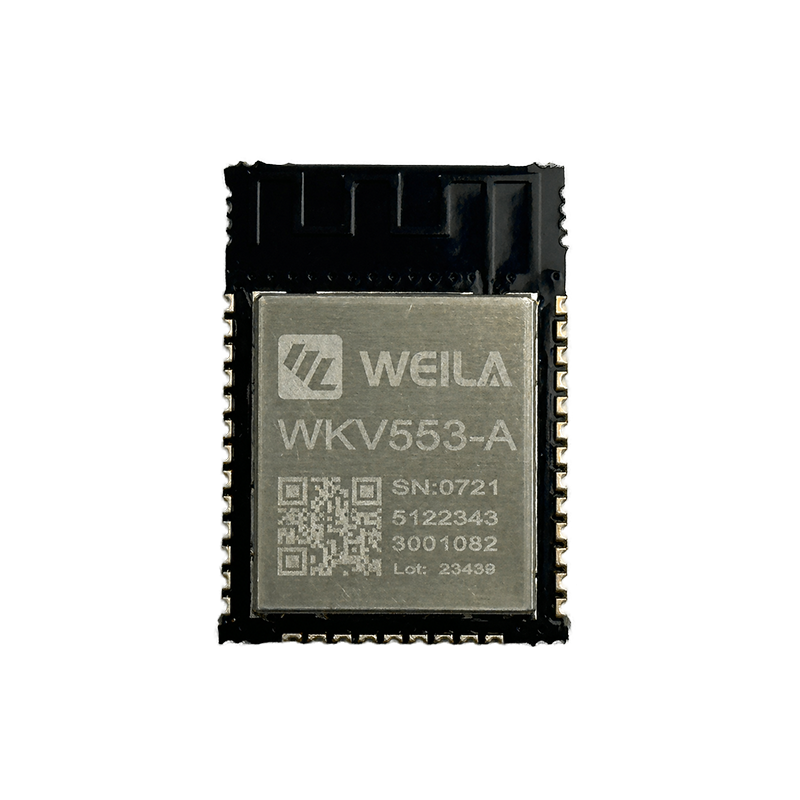

WKV553 module is a dual-mode Wi-Fi 6 + Bluetooth 5.2 (BLE) wireless module developed by Guangdong WEILA Intelligent Technology Co., Ltd. The module is based on the GigaDevice GD32VW553 chipset, which integrates a low-power 32-bit RISC-V processor with a clock frequency of up to 160 MHz. It provides a rich set of peripherals, including ADC, SPI, QSPI, I²C, USART, UART, and more.

In addition to its powerful MCU capabilities, the GD32VW553 integrates 2.4 GHz Wi-Fi 6 and Bluetooth 5.2 Low Energy (LE) connectivity. Compared with traditional Wi-Fi 4, Wi-Fi 6 offers significant advantages such as higher bandwidth, greater network capacity, lower latency, and reduced power consumption, helping to optimize and enhance the performance of IoT devices.

Combined with BLE 5.2, the module can easily support Bluetooth provisioning (Bluetooth-assisted network configuration). Bluetooth can also operate independently for applications such as data transmission, device communication, and other wireless functions.

The WKV553 module is suitable for a wide range of applications, particularly in:

·  Smart Home Appliances

·  Smart Home Systems

·  Industrial IoT

·  Consumer Electronics

·  Portable and Handheld Devices

·  Electric Bicycles (E-bikes)

·  IoT Devices

·  Communication Gateways

·  Various Wireless Connectivity Applications

Features

●  MCU

o   Low-power 32-bit RISC-V processor

o   Operating frequency up to 160 MHz

o   Up to 4096 KB on-chip Flash memory

o   Up to 320 KB SRAM memory

● WI FI

o   Support WI FI 2.4GHz IEEE802.11b/g/n/ax

o   Support  802.11e QoS Enhancement (WMM)

o   Support  802.11i (WPA, WPA2, WPA3). Open, shared key, and pair-wise key authentication services

o   Support Wi Fi WPS

o   Support Wi Fi Direct

o   Integrated TCP/IP protocol stack support

o   Support Target Wake up Time (TWT) operation

o   Support Multiple BSSID operation

o   Support OFDMA-based random access

o   Support Transmission and reception of aggregated MPDUs (A-MPDU) for high throughput

o   Support Support for immediate ACK and Block-ACK policies

●  BLE

o   Support BLE 5.2

o   Support High speed 2M PHY

o   Support Long range coded PHY

o   Support Data rate: 250, 500, 1000 and 2000kbps

● On-Chip Resources

o   1 × 12-bit ADC

o   1 × SPI

o   1 × QSPI

o   2 × I²C

o   1 × USART

o   2 × UART

o   Wi-Fi / BLE wireless interface

o   2 × General-purpose 32-bit timers

o   2 × General-purpose 16-bit timers

o   1 × Basic timer

o   1 × Advanced PWM timer

o   Cryptographic Acceleration Unit (CAU)

o   Hash Acceleration Unit (HAU)

o   Public Key Cryptography Acceleration Unit (PKCAU)

o   True Random Number Generator (TRNG)
