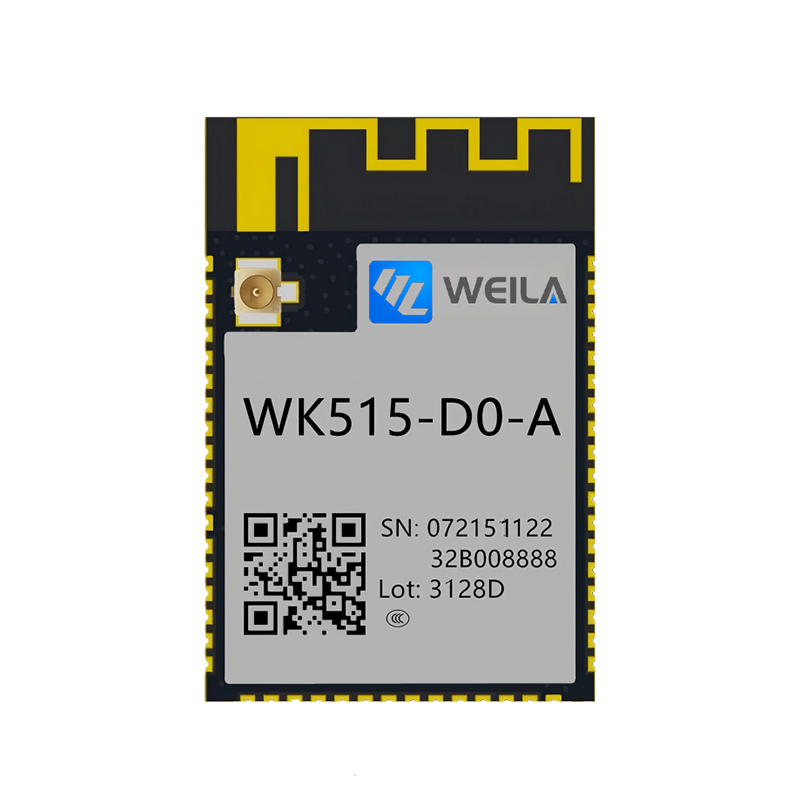

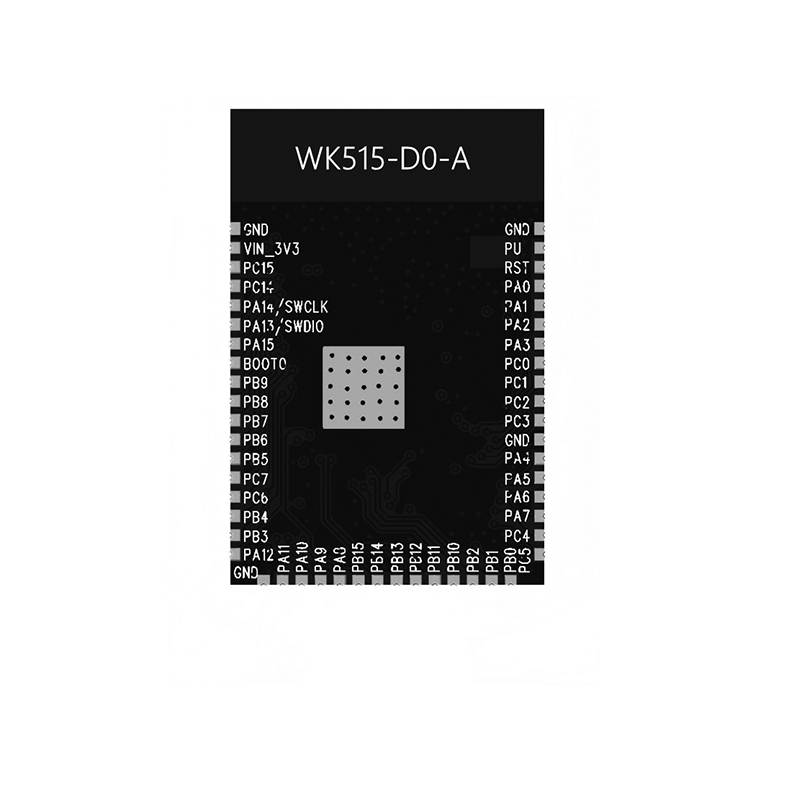

WK515 SMD Module is a highly integrated 2.4GHz Wi-Fi module based on GD32W515 chipset. The chip features an embedded ARM Cortex-M33 processor with TrustZone technology, operating at a clock frequency of up to 180MHz. It is an optimized SoC specifically designed for smart devices across a wide range of Internet of Things (IoT) applications.

The Cortex-M33 is a 32-bit processor based on the ARMv8-M architecture, offering low interrupt latency and cost-effective debugging capabilities. It supports a powerful and scalable instruction set, including general-purpose data processing, I/O control tasks, advanced data processing, bit-field operations, and DSP functions. Its high level of integration makes the Cortex-M33 an ideal choice for microcontroller-based products that require both high performance and low power consumption.

Features

● Arm Cortex-M33 Core

o   Operating frequency up to 180 MHz

o   Integrated 2.4GHz single-stream IEEE 802.11b/g/n MAC/Baseband/RF wireless module

o   DSP instruction extensions and single-precision Floating Point Unit (FPU)

o   TrustZone hardware security architecture

● Memory

o   Up to 2048KB on-chip Flash

o   Up to 448KB SRAM

o   Supports up to 32MB external Flash

● RF Performance

o   Maximum transmit power up to 21 dBm

o   Receiver sensitivity as low as -97.6 dBm

o   Adjacent Channel Rejection (ACR) up to 48 dB

o   Iperf throughput up to 50 Mbps, with laboratory shielded-room testing achieving up to 80 Mbps

● High-Precision Analog Peripheral

o   1 × 12-bit ADC

● Integrated Peripheral Interfaces

o   2 × SPI

o   1 × SQPI

o   1 × SDIO

o   2 × I²C

o   3 × USART

o   1 × I²S

o   1 × USB 2.0 Full-Speed (FS)

o   Wi-Fi wireless interface

● On-Chip Resources

o   4 × General-Purpose 16-bit Timers

o   2 × General-Purpose 32-bit Timers

o   1 × Basic Timer

o   1 × Advanced PWM Timer

o   TrustZone Protection Control Unit (TZPCU)

o   Digital Camera Interface (DCI)

o   Touch Sensing Interface (TSI)

o   Quad SPI Flash Interface (QSPI)

o   High-Performance Digital Filter (HPDF)

Applications

·  Industrial control systems

·  Motor drive applications

·  Human-machine interfaces (HMI)

·  Power monitoring and alarm systems

·  Consumer electronics and handheld devices

·  Gaming and GPS products

·  Electric bicycles (E-bikes)

·  Optical modules

·  Various IoT smart devices

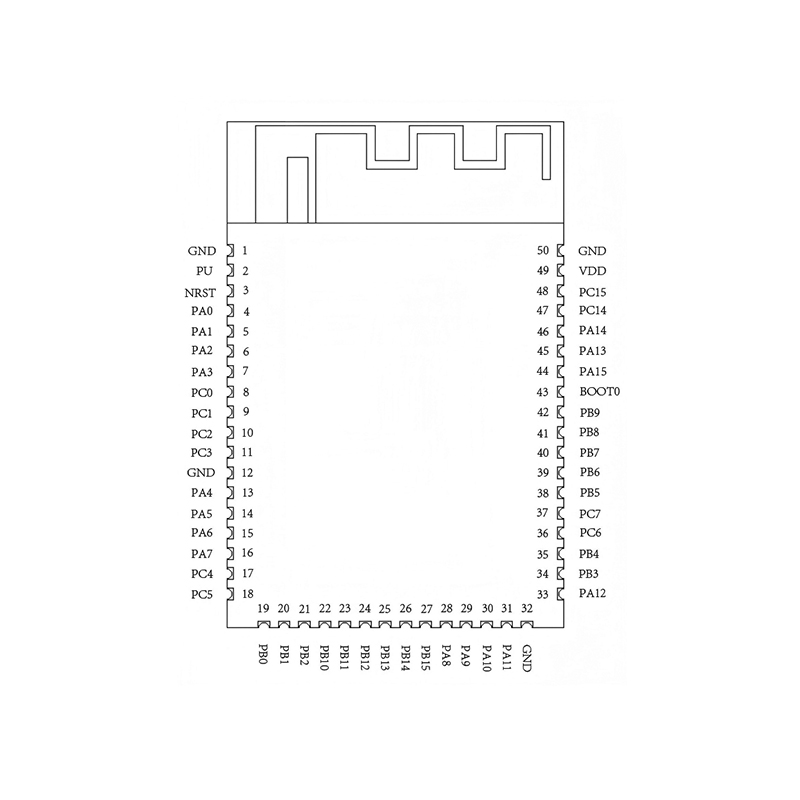

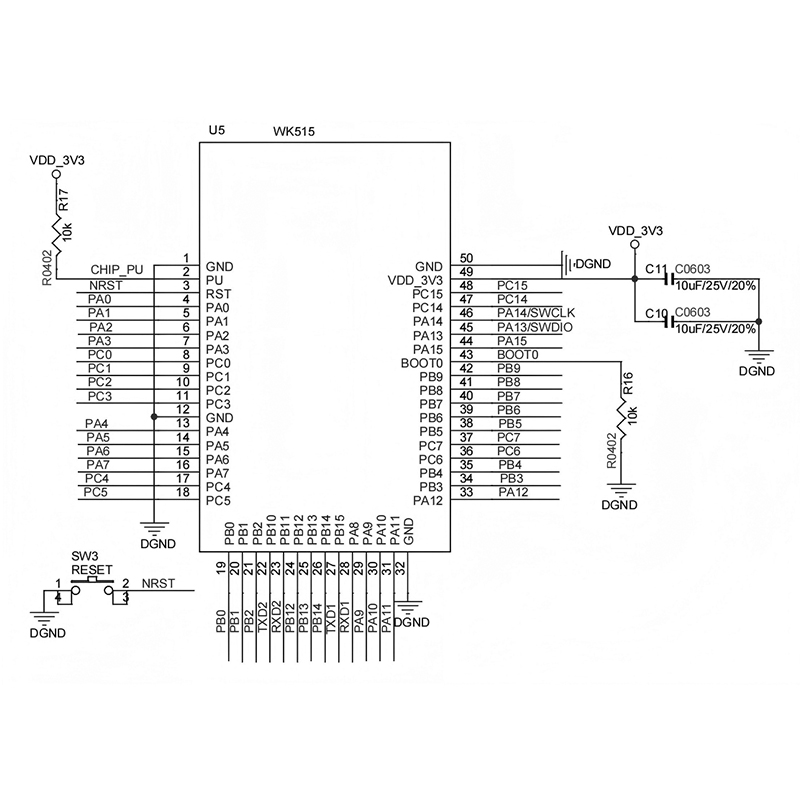

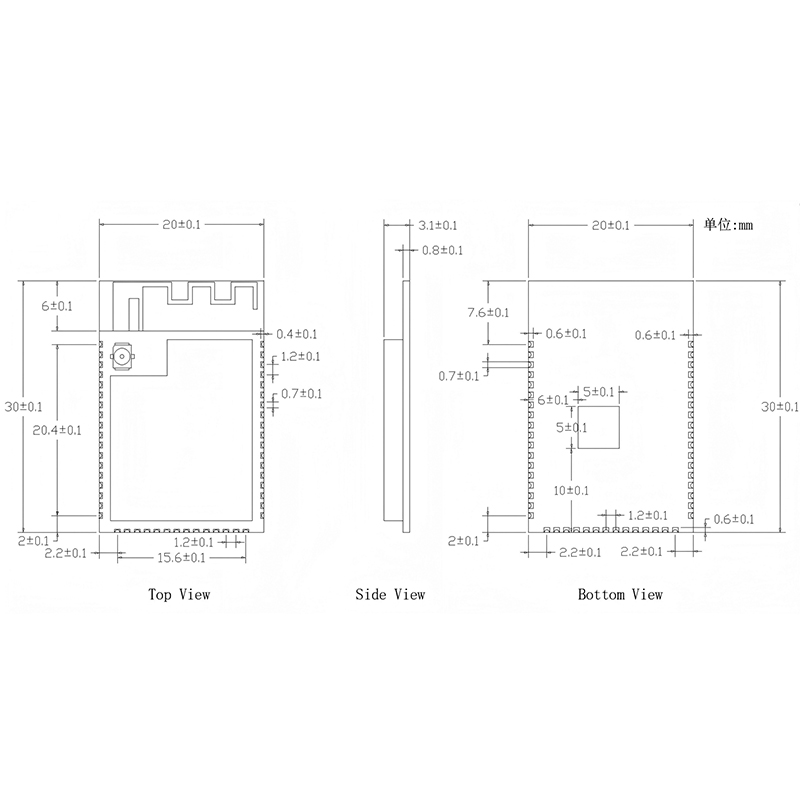

Specification
