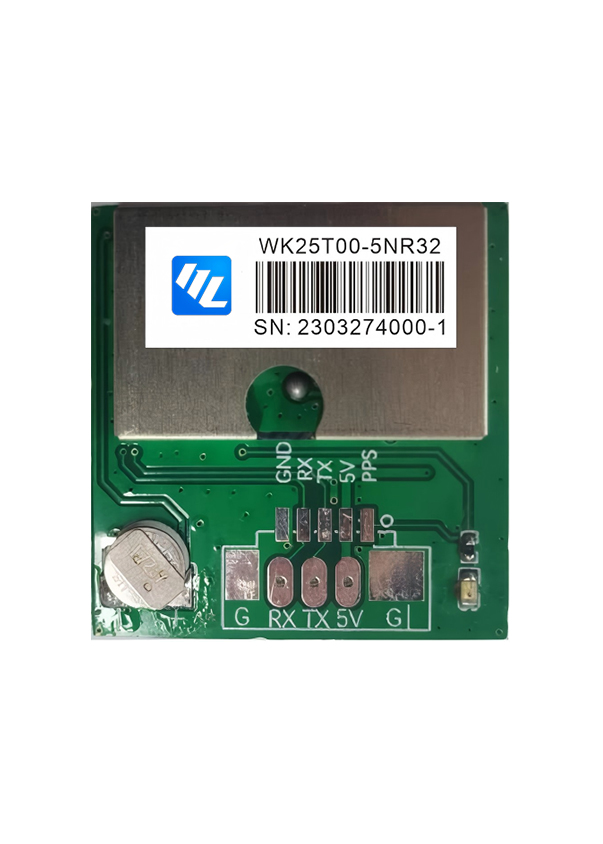

WK25T00-5NR32 supports BDS/GPS satellite navigation systems for single-system positioning and also enables multi-system joint positioning (capable of positioning)

BDS/GPS/GLONASS single-system versions or multi-system combination versions;

Support A-GNSS for rapid cold start and quick positioning in weak signal conditions;

Cold start capture sensitivity: -148dBm;

Hot start capture sensitivity: -156dBm;

Recapture sensitivity: -160dBm;

Tracking sensitivity: -162dBm;

Positioning accuracy: 2.5 meters (CEP50);

Initial positioning time: ≤32 seconds;

Low power consumption: Continuous operation at 25mA@5V;

Built-in antenna detection and short-circuit protection function;

• Onboard high-performance 25x25x4mm high-performance ceramic;

Built-in LNA;

The onboard Faraday capacitor enables rapid thermal startup (<1s thermal startup);

Standard NMEA-0183 protocol output.
