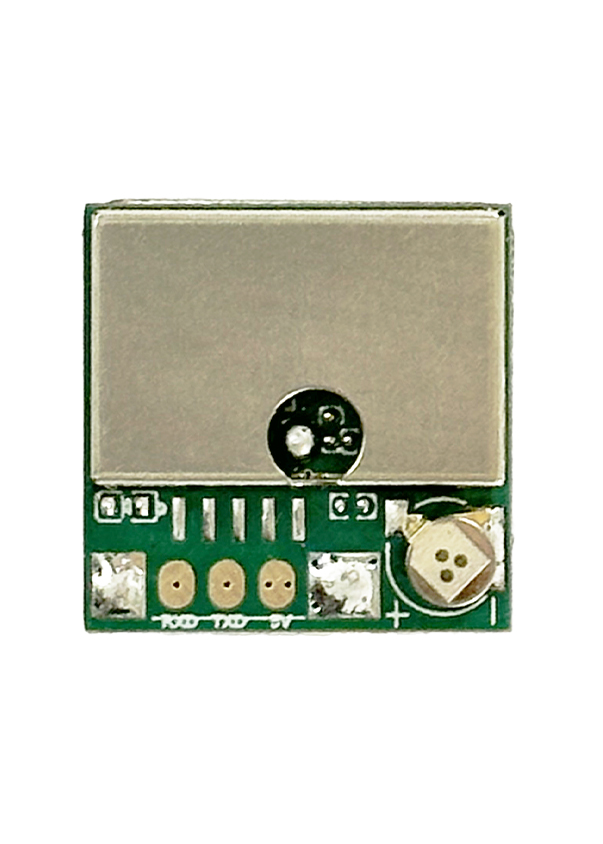

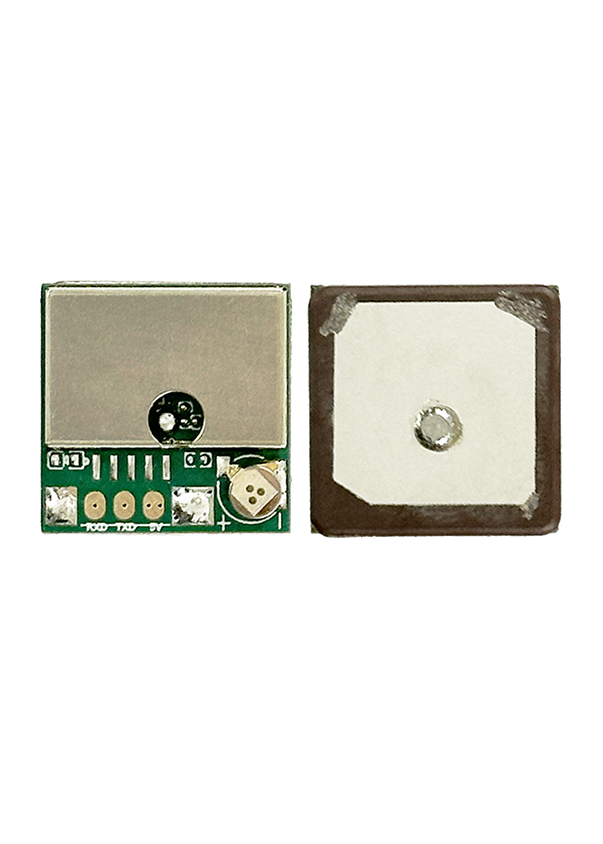

WKG0184T06Y01 supports BDS/GPS satellite navigation system single system positioning and can also support multi system joint positioning (locatable)

BDS/GPS/GLONASS/Galileo, any single system version or multiple system combination version;

Support A-GNSS for fast cold start and weak signal fast positioning;

Cold start capture sensitivity: -148dBm;

Hot start capture sensitivity: -156dBm;

Re capture sensitivity: -160dBm;

Tracking sensitivity: -162dBm;

Positioning accuracy: 1.5m (CEP50);

Initial positioning time: ≤ 23s;

Low power consumption: continuous operation~30mA @ 5V;

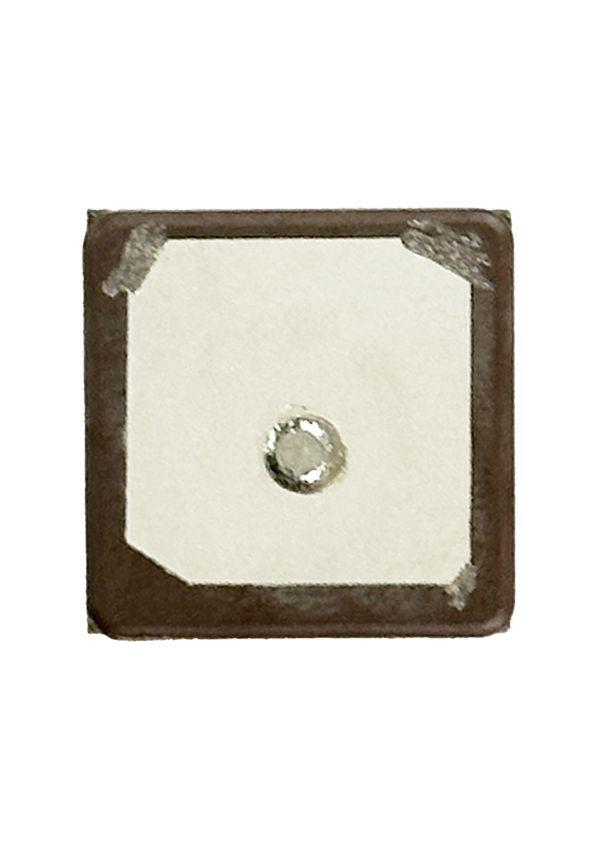

Onboard high-performance 18x18x4mm high-performance ceramics (other sizes can also be customized);

Built in LNA;

Onboard Farad capacitors can achieve fast hot start (<1s hot start);

Standard NMEA-0183 protocol output.
