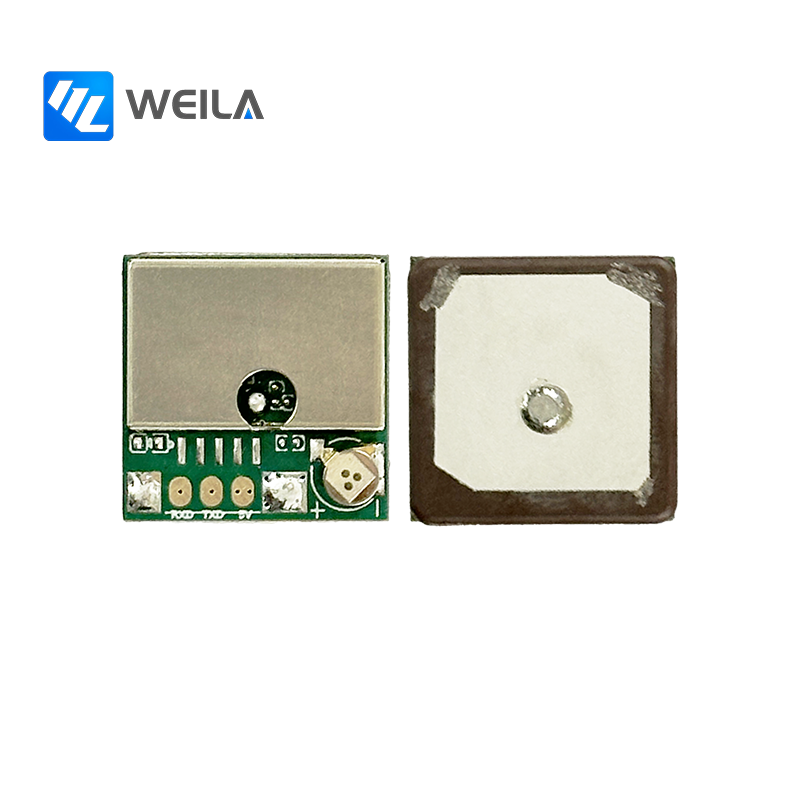

WKG0184T03Y01 is a high-performance, low-power GNSS multi-mode positioning module. It is
based on the AT6850B-7N22 SoC, which integrates RF front-end, baseband processing, BDS
signal processing engine, and power management.
The module supports:
BDS-2 and BDS-3
B1I and B1C signals
Standalone BeiDou positioning and timing
It features high sensitivity, low power consumption, and cost efficiency.
2. Key Features
Supports BDS-2 / BDS-3 (B1I, B1C)
Supports A-BDS for fast cold start and rapid positioning under weak signal conditions
Cold start sensitivity: -148 dBm
Hot start sensitivity: -156 dBm
Reacquisition sensitivity: -160 dBm
Tracking sensitivity: -162 dBm
Position accuracy: 1.5m (CEP50)
TTFF: ≤23s
Low power consumption (~30mA @5V)
Built-in 18×18×2mm ceramic antenna(customization size available)
Integrated LNA
Fast hot start (<1s) with onboard capacitor
Standard NMEA-0183 output
3. Applications
Vehicle navigation and tracking
Power timing / 4G/5G synchronization
IoT positioning devices
UAV (drones)
Portable devices
4. Assisted GNSS
Supports A-BDS, providing assistance data such as ephemeris, approximate position, and
time. This significantly reduces Time-To-First-Fix (TTFF), even in weak signal environments.
5. Output Protocol
The module outputs data via UART interface using NMEA-0183 protocol.
6. Performance Specifications
Module Number | WKG0184T03Y01 |
Chipset | AT6850B |
Module Size | 18x18x4.2mm |
Satellite System | BDS-2 / BDS-3 |
Band | B1I / B1C |
Tracking Sensitivity | -162dBm |
Re-acquisition Sensitivity | -160dBm |
Cold Start Time | ＜23s |
Warm Start Time | ＜1s |
Hot Start Time | ＜1s |
UART Baud Rate | 4800bps-115200bps, default:115200bps |
Output Protocol | NMEA0183 |
Supply Voltage | DC 3.3V to 5.5V |
Update Rate | 1Hz default / up to 5Hz |
Position Accuracy | ≤1.5m (CEP50) |
Operating Temperature | –40 °C to +85 °C |
Storage Temperature | –40 °C to +85 °C |
